Boron Steel Bulldozer End Bit 8E4542 7 Holes Manganese
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Certification: | ISO |
| Model Number: | Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | wooden plate |
| Delivery Time: | 25 days |
|
Detail Information |
|||
| Product Name: | 8E4542 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 50x483x737 |
| Part Number: | 8E4542 | Weight: | 106.3kg |
| Highlight: | Boron steel Bulldozer End Bit,7 holes Manganese Bulldozer End Bit,8E4542 |
||
Product Description

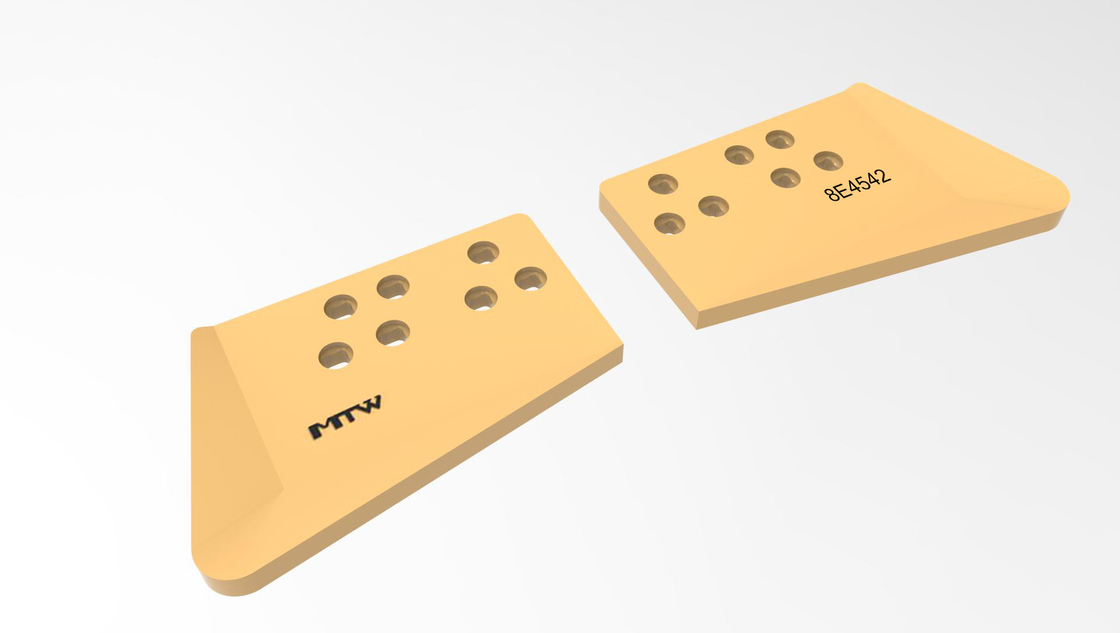

Bulldozer End Bit
description of 8E4542 Bulldozer End Bit
The contoured design offers an impact rib built into the high wear area enhancing wear life and improving the strength of the end bit corner. Designed with more wear material in the critical areas, MTW end bits are engineered to offer maximum wear life while minimizing throw-away steel, enhancing the value for the customer. Machined surfaces on larger dozers (D9 and larger) enable superior fit while minimizing installation time and effort. Maximum depth countersinking protects the bolt head from premature wear and failure.
| Part Number | Blade Position | Qty Req | Bit Type | Thick Width Length(mm) | Total Holes | Weight |
| 8E4542 | Hot Cup End Bit | 1 | HCEB | 50x483x737 | 7 |
106.3kg |
| part number | type | thick | wide | length | Description | weight |
| 1U0593 | DBF | 30 | 360 | 1317 | DBF 30X360X1317 | 97.1 |
| 7D1576 | DBC | 19 | 203 | 1828 | DBC 19X203X1828 | 50 |
| 7D1577 | DBC | 19 | 203 | 2133 | DBC 19X203X2133 | 59 |
| 7D1949 | DBC | 19 | 203 | 2438 | DBC 19X203X2438 | 67 |
| 7T1633 | DBC | 16 | 152 | 1828 | DBC 16X152X1828 | 29.6 |
| 7T1645 | DBC | 16 | 152 | 2133 | DBC 16X152X2133 | 34.5 |
| 7T5702 | DBF | 35 | 330 | 1787 | DBF 35X330X1787 | 151.7 |
| 7T9125 | DBF | 35 | 330 | 800 | DBF 35X330X800 | 66.5 |
| 7V1490 | SBFY | 38 | 300 | 3032 | SBFY 38X300X3032 | 245.7 |
| 8E4193 | HCEB | 40 | 403 | 597 | HCEB 40X403X597 | 57.6 |
| 8E4194 | HCEB | 40 | 403 | 597 | HCEB 40X403X597 | 57.6 |
| 8E4196 | HCEB | 50 | 405 | 610 | HCEB 50X405X610 | 73 |
| 8E4197 | HCEB | 50 | 405 | 610 | HCEB 50X405X610 | 73 |
| 8E4198 | HCEB | 50 | 483 | 737 | HCEB 50X483X737 | 105.9 |
| 8E4199 | HCEB | 50 | 483 | 737 | HCEB 50X483X737 | 105.9 |
| 8E4541 | HCEB | 50 | 483 | 737 | HCEB 50X483X737 | 106.3 |

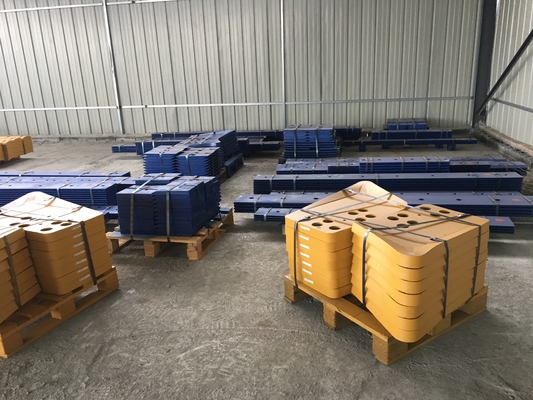

Package and shipments
