50mm 8E4197 Bulldozer Cutting Edges
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Certification: | ISO |
| Model Number: | Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | wooden plate |
| Delivery Time: | 25 days |
|
Detail Information |
|||
| Product Name: | 8E4197 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 50x405x610 |
| Part Number: | 8E4197 | Weight: | 73kg |
| Highlight: | 50mm Bulldozer Cutting Edges,MTW Bulldozer Cutting Edges,8E4197 |
||
Product Description

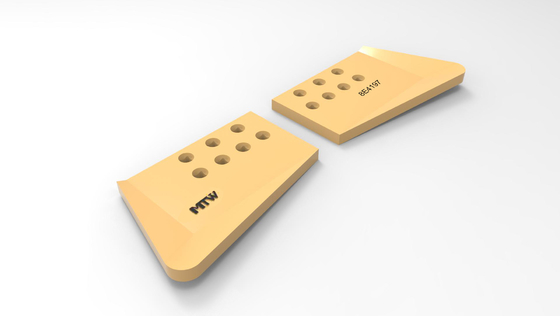

Bulldozer End Bit
description of Bulldozer End Bit
MTW cast dozer end bits are designed and built to outperform the competition using our highspec alloy X14 steel for excellent wear characteristics and superior impact resistance.
The contoured design offers an impact rib built into the high wear area enhancing wear life and improving the strength of the end bit corner. Designed with more wear material in the critical areas, MTW end bits are engineered to offer maximum wear life while minimizing throw-away steel, enhancing the value for the customer. Machined surfaces on larger dozers (D9 and larger) enable superior fit while minimizing installation time and effort. Maximum depth countersinking protects the bolt head from premature wear and failure.
MTW also provides high-quality hardware for your end bit hole type.
| Part Number | Blade Position | Qty Req | Bit Type | Thick Width Length(mm) | Total Holes | Weight |
| 8E4197 | Hot Cup End Bit | 1 | HCEB | 50x405x610 | 7 |
73kg |

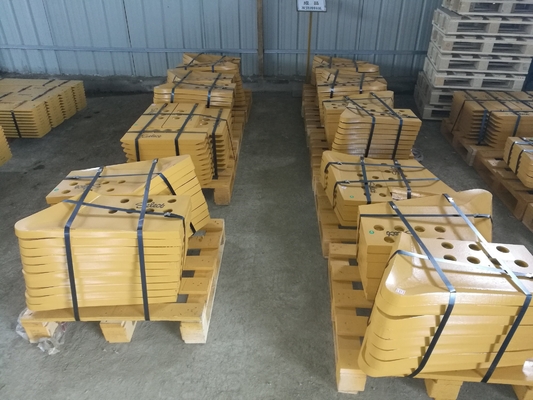

Package and shipments
