Cast Half Arrow 42.5kg 116-7460-X980G 982M 986K 988F / 374 385 5110B
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Certification: | ISO |
| Model Number: | 982M 986K 988F / 374 385 5110B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000kgs |
|---|---|
| Packaging Details: | ply-wooden blocks |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Material: | Cast Alloy | Product Name: | 116-7460-X |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 465x312x75 |
| Weight: | 42.5kg | ||
| Highlight: | Cast Half Arrow 42.5kg,Heavy Duty Cast Half Arrow,HAL Bit Type Half Arrow |
||
Product Description
Cast Half Arrow 42.5kg 116-7460-X980G 982M 986K 988F / 374 385 5110B
Half Arrow 116-7460-X
One of the most versatile wear parts available, heavy duty Half Arrow are an excellent tool for strengthening and protecting buckets, or extending the service life of damaged buckets.
With their universal edge, weld-on Half Arrow Profiles can be installed on any type of bucket and offer far greater service life than a traditional bolt-on cutting edge, according to Cutting Edges Product Support Representative
“They are suitable for any brand and style of bucket and deliver superb service life thanks to their proven profile, and being manufactured from 500 Brinell, thru-hardened steel.”
Not only designed for a bucket’s base edge, Half Arrow s can be cut and welded between bucket teeth to reduce scalloping, or installed as bucket side bars to improve penetration or bucket capacity.
| Part Number | Blade Position | Qty Req | Bit Type | Thick Width Length(in) | Total Holes | Weight |
| 116-7460-X | Half Arrow LH | 1 | HAL | 465x312x75 | 3 | 42.5kg |

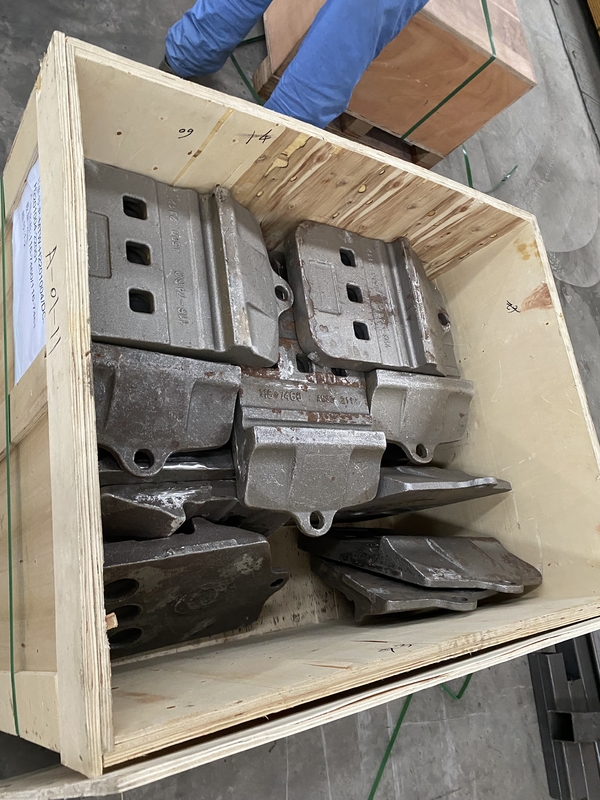

Package and shipments
