1399230HAN Center Cast Half Arrow 2 Holes 60x263x816mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Certification: | ISO |
| Model Number: | Cast Half Arrow |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000kgs |
|---|---|
| Packaging Details: | ply-wooden blocks |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | Cast Half Arrow | Material: | Cast Alloy |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 60x263x816 |
| Part Number: | 1399230HAN Center | Weight: | 197.09KG |
| Highlight: | 2 Holes Cast Half Arrow,Center Cast Half Arrow,Two Holes Cast Half Arrow |
||
Product Description

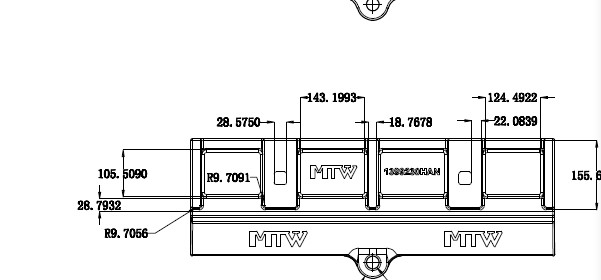

1399230HAN Center Cast Half Arrow 2holes

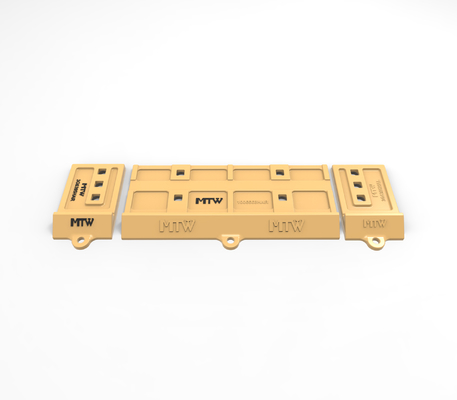

Half Arrow
MTW Half Arrow designs offer the benefits of more material in the high-wear areas, increased bucket capacity, and enhanced bucket penetration. Maximum depth countersinking allows for optimum use of wear material before the bolt head’s failure. The sharpened nose design offers excellent penetration capability and enhanced material flow into the bucket. The combination of half arrow blades and base edge covers protects the base edge while optimizing the flow of material into and out of the bucket. MTW unique design puts more wear material where it is needed most, on the underside of the blades where abrasion is highest.
| Part Number | Blade Position | Qty Req | Bit Type | Thick Width Length(in) | Total Holes | Weight |
| 1399230HAN | Center | 1 | 60x263x816 | 2 |
197.09KG |
